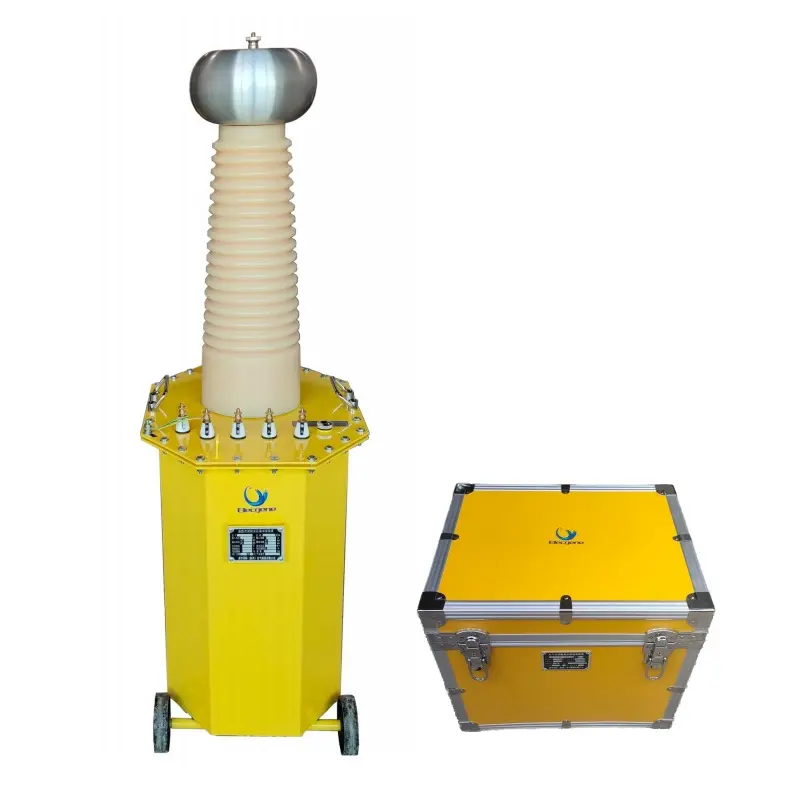

YTB-20 Series 100kV AC / 140kV DC High-Voltage Test System

  • Dual-mode high-voltage testing: 100kV AC and 140kV DC (with optional rectifier)
  • Safe, two-piece structure with separate control and HV units
  • Equipped with over-current protection and a test duration timer
  • Voltage is continuously adjustable
  • Designed for insulation level testing in high-voltage environments
  • Robust construction with insulating oil as the dielectric medium

Share This Product :

The YTB-20 Series (100kV–140kV) is a professional-grade high-voltage test system designed for evaluating the insulation integrity of electrical equipment, materials, and switchgear. Ideal for medium-voltage substations and transformer yards, it offers high-precision AC and optional DC testing capabilities. With a two-part configuration, this system allows operators to manage high-voltage testing from a safe distance using a variac-based control unit equipped with real-time voltage, current, and time indicators. This model is particularly valuable for applications requiring DC up to 140kV via a rectifier module.
Applications:
  • High-voltage withstand testing of switchgear and circuit breakers
  • Dielectric and insulation testing of MV transformers and cables
  • Type testing and quality assurance in HV manufacturing
  • Substation component validation for utilities and grid operators
  • Electrical material insulation resistance assessment
Specifications:
Model YTB-20(5/100) YTB-20(10/100)
Rated Capacity 5 kVA 10 kVA
Input Voltage 200–240 VAC, 50/60Hz 200–240 VAC, 50/60Hz
Output Voltage 0–100kV AC / 0–140kV DC (optional) 0–100kV AC / 0–140kV DC (optional)
Output Current AC: 0–50mA / DC: 0–15mA AC: 0–100mA / DC: 0–35mA
Voltage Ratio 1000 1000
Insulation Medium Insulating Oil Insulating Oil
Duty Cycle 5 min ON / 15 min OFF 5 min ON / 15 min OFF
Control Unit:
  • Size: 440 × 340 × 230 mm (5kVA), 440 × 340 × 380 mm (10kVA)
  • Weight: 21 kg (5kVA), 37 kg (10kVA)
Transformer:
  • Size: 465 × 350 × 1100 mm (5kVA), 495 × 350 × 1120 mm (10kVA)
  • Weight: 100 kg (5kVA), 115 kg (10kVA)

About Manufacturer:
Founded in 2008, Xianheng intl (Elecgene) is a leading developer and manufacturer of portable and rugged test equipment for electrical systems and substations in China. Their tools focus on safety, speed, and cost-efficiency. Elecgene is listed on the Shanghai Stock Exchange and has built lasting partnerships across America, Europe, Southeast Asia, Africa, and the Middle East.
