ZH480 Dual-Field-of-View UV Corona Camera Shape
ZH480 Dual-Field-of-View UV Corona Camera Shape - Image 2
ZH480 Dual-Field-of-View UV Corona Camera Shape - Image 3
ZH480 Dual-Field-of-View UV Corona Camera Shape - Image 4
ZH480 Dual-Field-of-View UV Corona Camera Shape - Image 5
ZH480 Dual-Field-of-View UV Corona Camera Shape - Image 6

ZH480 Dual-Field-of-View UV Corona Camera Shape

  • Dual field-of-view design (wide and narrow).
  • High-sensitivity solar-blind UV detector (240 – 280 nm).
  • Visible-light camera for fusion imaging.
  • Optional Wi-Fi, Bluetooth, GPS, HDMI.

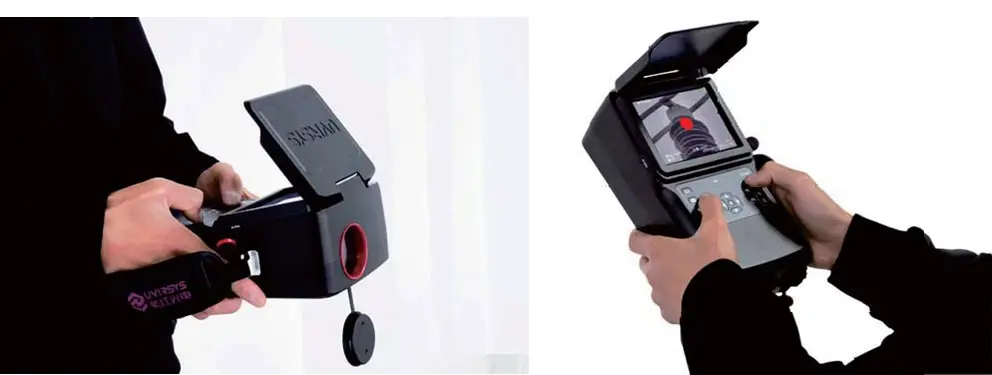

  • Hand-held, lightweight construction.

Share This Product :

Get a Quote
ZH480 Dual-FOV UV Camera is a portable device for detection of corona discharge and partial discharge on high-voltage power equipment.
It combines ultraviolet and visible imaging; the dual-FOV optical system enables both long-range and close-range observation.

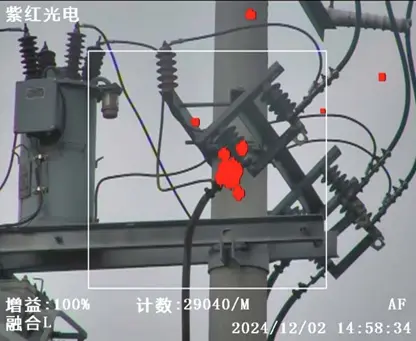

The system overlays UV and visible images in real time and supports video and photo recording to TF card storage for preventive maintenance and inspection of substations and transmission lines.
Technical Specifications:
UV – OPTICAL PROPERTIES
Spectral Range  240 to 280nm
Minimum Discharge Sensitivity  1.0 pc @15m (IEC 60270:2000)
Minimum RIV Sensitivity  3.6 dBµV （RIV) @10m (NEMA107-1987)
Minimum UV Sensitivity  2.0*10 – 18 Watt/cm²
Focus & Focus Range  Auto, 1.5m to ∞, UV integral function: X2, X4, X8, X16
F.O.V & Zoom  Switchable, 13.3 * 10.6° & 5 * 3.75°，X2 detector no degradation
UV – OPTICAL PROPERTIES
Focus & Focus Range  Auto/Manual(Follow visible light) , 1.5m to ∞
Minimum Visible Light Sensitivity  0.1 Lux
Zoom  x10 optical, x12 digital
DISPLAY
Modes  Combine(UV+VIS), UV only, Visible only

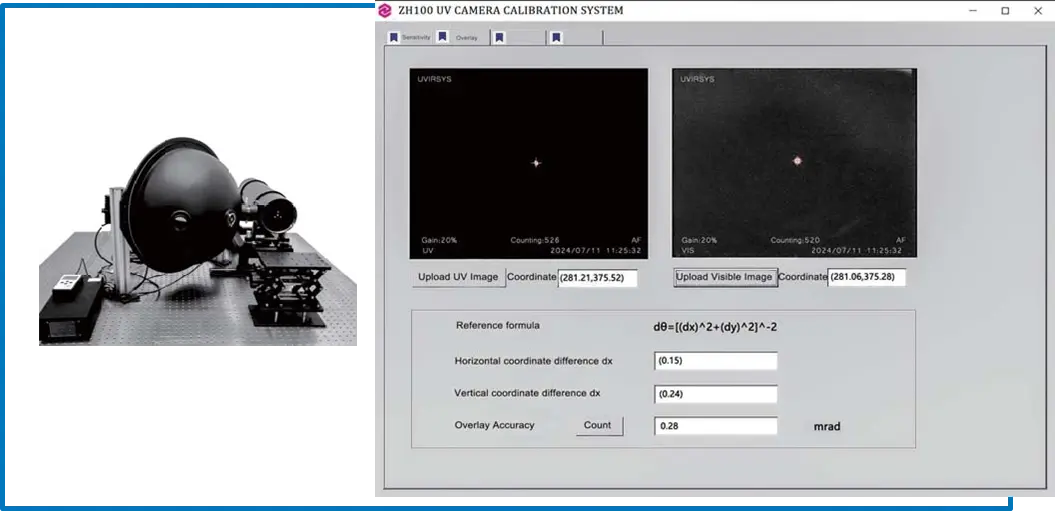

UV/Visble Overlay Accuracy  1 mrad
Type  5 inch color Transflective Sunlight readable LCD
Brightness  1000 cd/cm2
Display and Image Resolution  1280*720, 736*576
Status Informatioon Display  Battery, gains, counting number, date, focus, alarm
CONTROLS AND OPERATION
Status Modes  Real time, sleep, power off
Continuous Opereation  Continuous operation, no cooling system
Controls Command  One for One keyboard input
SAVE AND PLAYBACK
Video  Provided , Output BNC/HDMI/WIFI/BLUETOOTH(Optional)
Still Images  Provided
Data Save  64G TF Card
Video & Picture Format  MP4/AVI& JPG
GPS, Temperature and Humidity Sensor  Provided
Playback function  Video and Still Image
CHARACTERISTICS
Detector  Life without attenuation
Images fusion  Images fusion algorithm
Colors  7 kinds of colors selectable
POWER SOURCE
Battery  Rechargeable batter
Working hours  Rechargeable batter
comsumption  Dc14.8V, 15.4W
ENVIRONMENTAL
Operation & Storage Temp  -20℃ to +55℃, -20℃ to +60℃,
PHYICAL PARAMETERS
Dimensions L*W*H  244 x 135 x 96 mm
Weight  1.8kg
Key Features
  • Dual-FOV optical switching.
  • UV-visible image fusion and overlay.
  • Portable and battery-operated.
  • Real-time recording with timestamp.
Certifications
  • IEC 60270, NEMA 107-1987, ISO 9001
About Manufacturer
UVIRSYS designs and manufactures ultraviolet imaging and corona-detection systems for electrical-power diagnostics and predictive-maintenance inspection.
