| PARAMETERS |
DESCRIPTIONS |
| UV – OPTICAL PROPERTIES |
| UV Spectral Range |
240 ~280 nm |
| Our-of-Band Rejection |
Provided, Can Be Used in Daytime Under Sunshine |
| Minimum Discharge Sensitivity |
1.0 pC /15m |
| Minimum RIV Sensitivity |
3.6dBµV (RIV) @10m,1MHz |
| Minimum UV Sensitivity |
2.0×10-18 Watt/cm² |
| Focus & Focus Range |
Auto/manual focus for both UV and visible channels, 0.5m ~ ∞ |
| F.O.V |
10°- 1.25°(H),7.2°- 0.9°(V) |
| UV Integral Function |
OFF, X2, X4, X8, X16 |
| Gains |
0-100%, Adjustable |
| Photons Counting |
Provided |
| Counting Box |
5 Kinds: Small, Medium, Big, Full Screen, Quad box |
| Alarm |
Provided, Alarm Threshold Values Can Be Set |
| VISIBLE – OPTICAL PROPERTIES |
| Focus & Focus Range |
Auto, 0.5m ~ ∞ |
| Minimum Visible Light Sensitivity |
0.05 Lux |
| Zoom |
X25 Optical, 16 Digital |
| DISPLAY |
| Modes |
Combine (UV+VIS), UV only, Visible Only |
| UV/Visual Overlay Accuracy |
1 mrad |
| LCD size |
6.4” Screen |
| Brightness |
1400 cd/m2 ,adjustable backlight |

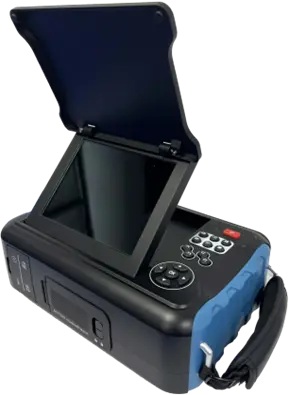

| LCD Flippable |
Yes |
| Display Resolution |
1280*720 |
| Corona Color |
7 Kinds: Red, White, Blue, Yellow, Cyan, Green, Magenta |
| Status Information Display |
Battery, Gains, Photons Counting, Focus Mode, Date, Alarm |
| CONTROLS AND OPERATION |
| Status Modes |
Real Time, Standby, Power off |
| Continuous Operation |
Continuous Operation, No Cooling System |
| Controls Command |
One for One Keyboard Input |
| LED Light |
Provided, ON/OFF |
| Laser Rangefinder |
Provided, 0.5-40m |
| GPS |
Provided |
| Temperature & Humidity Sensor |
Provided |
| SAVE AND PLAYBACK |
| Video |
Provided, MP4(AVI, MOV Optional) |
| Still Images |
Provided, JPG(JPEG, GIF, PNG, BMP Optional) |
| Data Save |
64G SD Card |
| Playback Function |
Videos and Still Images |
| Audio Annotation |
Microphone Voice Input |
| PHYICAL PARAMETERS |
| Battery |
Rechargeable Li Battery |
| Working Hours |
4h |
| Adapter |
DC15V 14.8W |
| Storage and Operation Temp |
-20℃ — +55℃ |
| IP Grade |
IP54 |
| Dimensions L*W*H |
29.0 × 19.0 × 10.7 cm |
| Weight |
2.7 kg |
|
Configurations |
Basic Units with Standard tripod mount, 64G Card, Card Reader, Lens cap, Carrying Strap, AC-DC Adaptor, 2 Batteries, Carrying Case, Software, Manual |
